With the deepening advancement of the national "15th Five-Year Plan" strategy, the construction of pumped storage power stations is entering a period of rapid development. As the core equipment in the various power house buildings, the performance of cranes directly impacts the safe hoisting and installation accuracy of key components such as the rotor, stator, and tailgate opening/closing devices of hydroelectric generator units.
Henan Weihua leverages its long-term technical expertise in the lifting industry to closely align with the development trends of pumped-storage power stations—characterized by "high head, large capacity, and high speed." It has innovatively launched a new series of specialized cranes, covering all scenarios including overhead bridge cranes for main plant halls, tailrace gate room cranes, and GIS room cranes, comprehensively meeting the high-standard lifting requirements for power stations throughout the entire lifecycle of installation, operation, and maintenance.
Crane for the main powerhouse of pumped-storage power stations
Lifting capacity range: 250t~320t (double machine tandem lifting)
450 (225+225) t ~ 640 (320+320) t (single machine with dual trolleys)
Span range: 23m-30.5m
Lifting height: 28m - 70m
Working Level: A3-A5

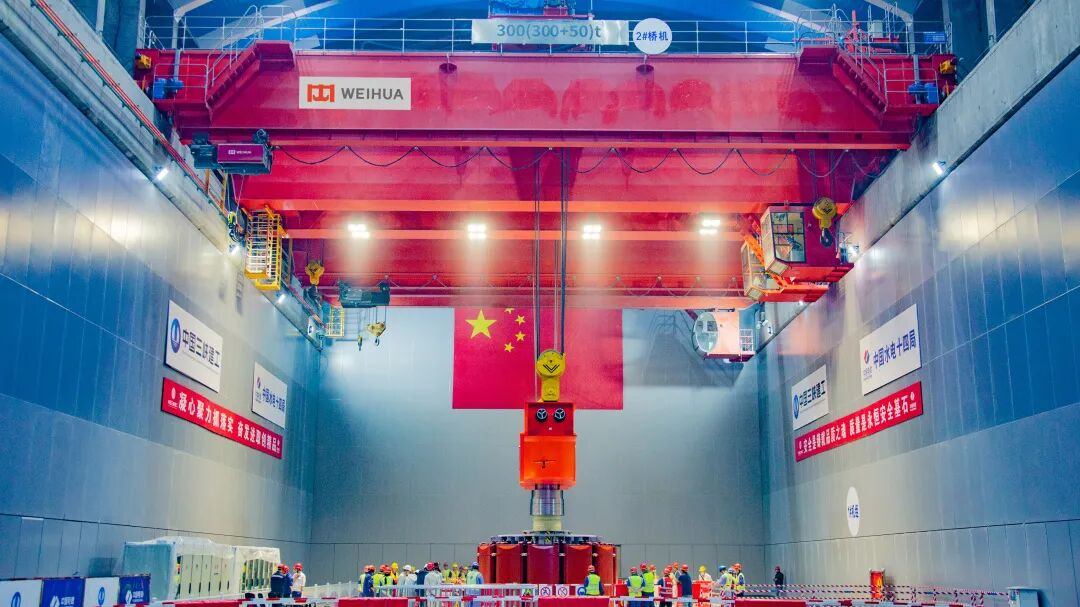

Weihua Pumped Storage Power Plant Main Building - Twin Crane for Dual Unit Lifting

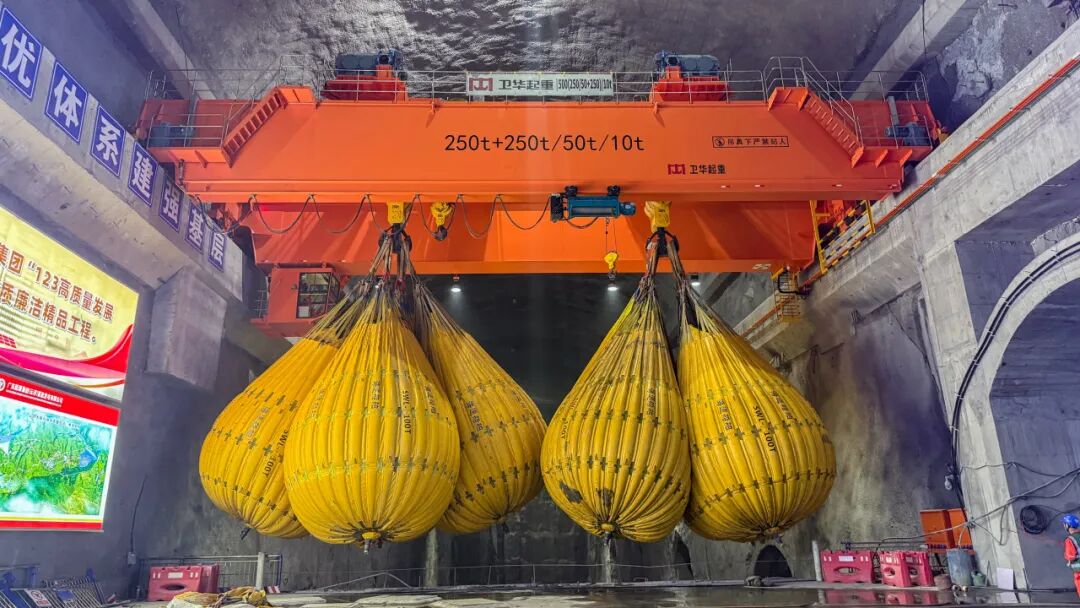

Weihua Pumped Storage Power Plant Main Building - Single Unit with Dual Trolley Cranes
Facing the engineering challenges of ultra-high head, ultra-large capacity, ultra-deep burial, and ultra-long shaft system in the pumped storage power plant main building, Weihua achieved the precise and stable lifting operation of the 516-ton rotor as a whole through dual-machine coordination, parallel coupling, and lifting.
The core technical advantages of this product are:
Intelligent collaborative lifting: Dual machine linkage cooperates with parallel lifting to achieve load balancing, stable turning, and precise positioning of overweight components.
Millimeter-level positioning control: Variable frequency stepless speed regulation combined with PLC control, paired with specialized flipping lifting tools, meets the requirements of precision installation.
Flexible adaptation of main and auxiliary trolleys: Synchronized main and auxiliary hooks with adjustable spacing to accommodate various dimensions and center of gravity conditions.
Full-cycle safety protection: Equipped with intelligent monitoring, multiple braking, and limit protection to ensure long-term reliable operation.
Strong environmental adaptability: Optimized for extreme working conditions such as high humidity, large temperature fluctuations, and continuous operation, ensuring stable and durable performance.
Tailgate crane chamber
Lifting capacity range: 50t~100t
Span range: 7m-11m
Lifting height: 25m-40m
Work level: A3-A5

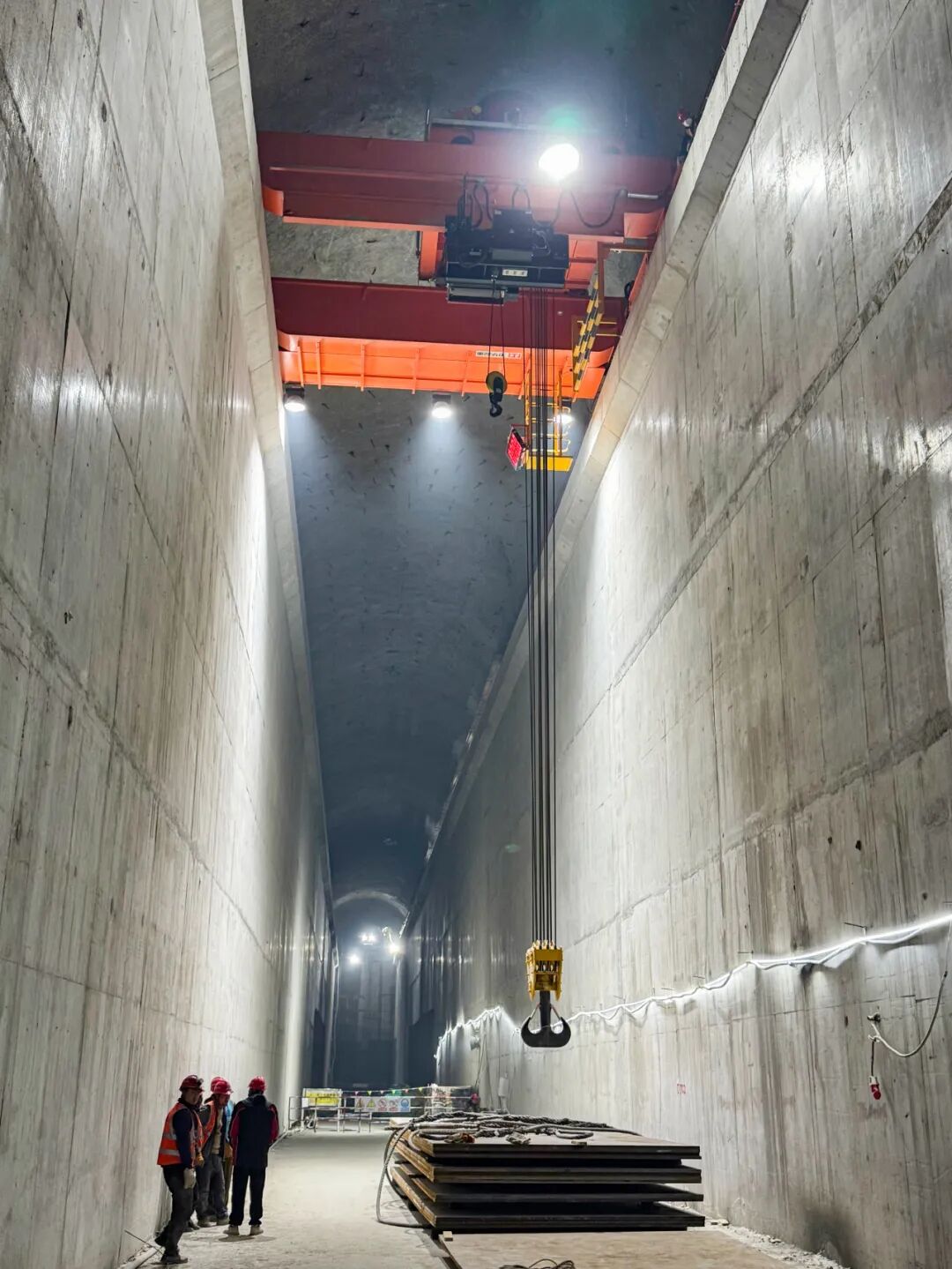

Weihua Tail Gate Room Crane
The tailgate room crane is primarily used for the installation, maintenance, and daily hoisting of tailwater emergency gates and their hydraulic hoists. Its core advantage lies in flexible and efficient operations within confined spaces, as detailed below:
Compact structural design: The fuselage dimensions are optimized to fit the confined space of the tail gate chamber, ensuring strong passability and flexible operation.
High-grade corrosion-resistant coating: Specifically designed for high-humidity and corrosive environments, significantly enhancing equipment durability.
PLC control + variable frequency stepless speed regulation: Smooth and precise operation, minimal shock during start-stop, safer and more reliable hoisting.
Air + Remote Dual Mode: Supports both ground and remote operation methods, with rapid response and flexible switching based on on-site needs.
GIS room crane
Lifting capacity range: 10t~16t
Span range: 13m-22m
Lifting height: 16m-30m
Work Level: A3-A5

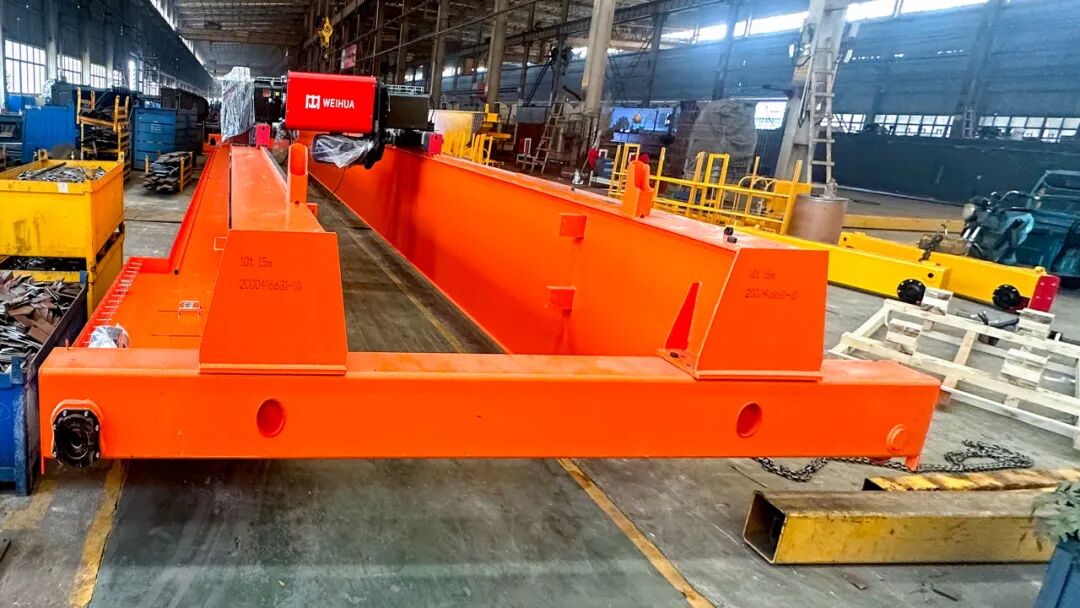

Weihua GIS Room Crane
The GIS room dedicated crane is specifically designed for the installation, maintenance, and routine servicing of electrical facilities such as gas-insulated switchgear and circuit breakers. It enables flexible, safe, and precise operations in confined spaces, with the following technical advantages:
Compact and lightweight design: The structure is meticulously crafted to adapt to the spatial constraints of GIS rooms, reducing the load pressure on building structures.
Dual-mode flexible operation: Supports manual and remote control, with rapid response to meet precise positioning needs in confined spaces.
Multiple Safety Guarantees: Equipped with braking protection and a multi-limit system to ensure safe and reliable lifting of electrical equipment throughout the entire process.
Shaft-specific crane
Lifting capacity range: 10t+3t~20t+3t (standard model)
10t+3t~25t (Ultra-high Lift Model)
Lifting height: 190m - 700m
Work Level: A3-A6

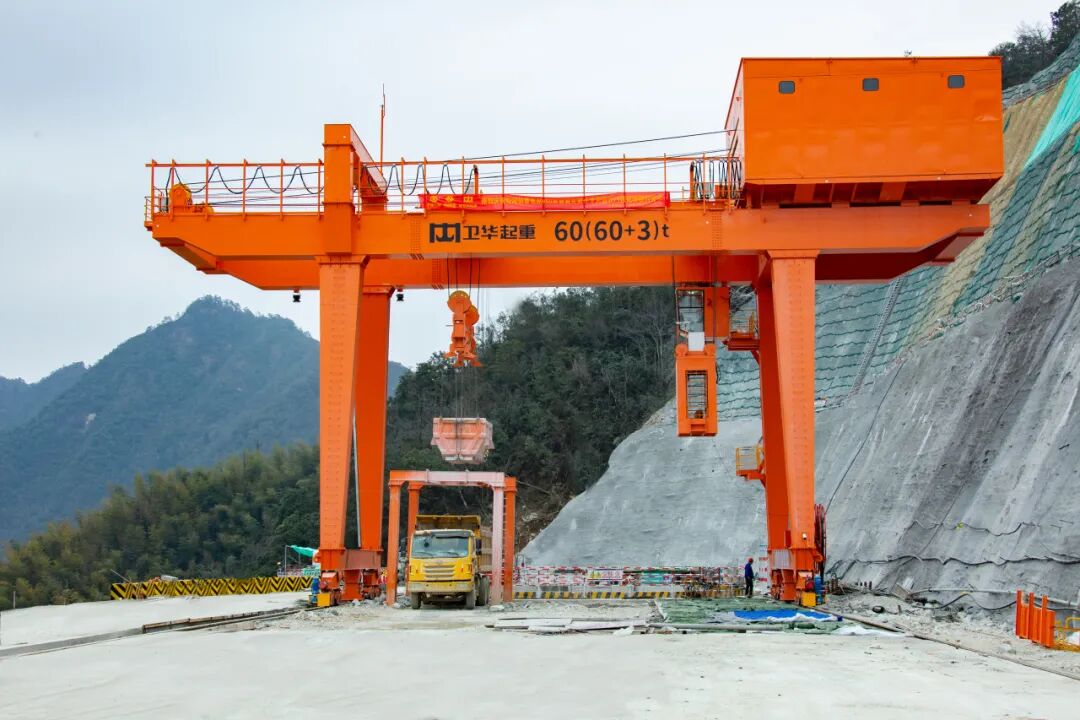

Weihua High-Specific-Gravity Vertical Shaft Specialized Crane
The vertical shaft dedicated gantry crane is the core equipment for deep vertical shaft construction in pumped storage power stations, undertaking critical missions such as shaft excavation, steel pipe hoisting, equipment conveyance, and safe personnel lifting.
This equipment pioneered the "dual parallel zigzag drum + traction-type constant offset arrangement" technology, successfully overcoming the technical bottleneck of multi-layered, orderly wire rope winding under an ultra-deep headway of 650 meters. It integrates 5G communication, UWB positioning, and AI technologies to achieve centimeter-level dynamic positioning and intelligent collaborative control in underground environments. Designed for both passenger and cargo operations, it innovatively features a "three-level braking + dual-rope redundancy" multi-layer safety protection system and a hoist cage life support device, meeting elevator-grade safety standards.
In the Songyang Pumped Storage Power Station project in Zhejiang, Henan Weihua customized the world's first 700-meter-class ultra-deep shaft hoisting-integrated intelligent specialized equipment, achieving comprehensive coverage of the entire shaft construction process. It played an irreplaceable role in key stages such as the excavation and slag removal of the upper section pressure relief shaft, the assembly and disassembly of the shaft boring machine inside the shaft, the precise hoisting of pressure steel pipes, fully automated detachment and hanging in deep shafts, and the efficient and safe transportation of construction personnel within the shaft. This significantly enhanced the efficiency and safety of ultra-deep narrow shaft operations, demonstrating Weihua's outstanding technical expertise in the field of super-large lifting equipment.
As a leading enterprise in the heavy equipment manufacturing industry, Henan Weihua leverages its industry-leading equipment matrix, including a 1,000-ton-class super-large type test bench, a 3D vision intelligent bevel cutting robot, and a 500-ton-class large structural component annealing furnace, to break through the entire process barriers from raw material processing to finished product inspection.
Every stage of production and processing integrates high-precision manufacturing genes and intelligent control logic, forming a manufacturing advantage characterized by "strong equipment, refined processes, and strict control." The machining accuracy of ultra-large structural components reaches the top tier of the industry, while the intelligent production line flexibly adapts to multi-category orders. With top-tier manufacturing capabilities, it delivers "high reliability, high efficiency, and high adaptability" solutions to global customers.
