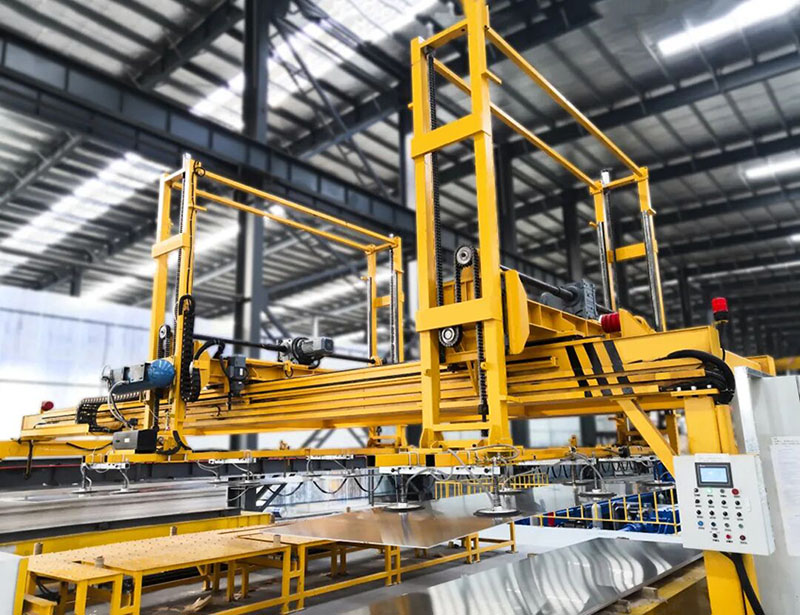

The handling workstation is composed of
Handling system, centering system, automatic control system
three parts
Suitable for automatic handling and palletizing of various types of boards
Feature 1: No damage
Vacuum suction lifting device with sensing function, effectively protecting the surface of the board
Feature 2: Stable
Rigid lifting and walking mechanism is stable and reliable
Feature 3: Precision
Servo drive, linear guide and gear rack transmission system, with a repeat positioning accuracy of 1mm and a repeat stacking accuracy of 3mm
Feature 4: Unmanned operation
PLC control and online operation of sheet stretching machines, transfer vehicles, etc., to achieve unmanned operation of production lines
Feature 5: Strong expansibility
Workstations can be used for the handling and loading/unloading of various types of boards
Performance Advantage
1. Equipped with a system constant pressure opening function, it automatically adsorbs and releases boards, with high automation, strong adaptability, and low power consumption.
2. The suction cup components adopt modular design, making installation, debugging, and later maintenance convenient and fast.
3. All actions are intelligently detected and controlled, enabling unmanned operation.
4 vacuum flexible suction cups, no damage to the surface of the board.
Weihua vacuum adsorption lifting device
Relying on a vacuum pump to extract air inside the suction cup
Generate vacuum
high security
(Power off suction retention)
high efficiency
(Rapid adsorption and release)
low power consumption
(System constant pressure activation function)
zero pollution
(Green and environmentally friendly air medium)
low noise
(No impact on the surrounding environment)
widely used in
Steel, aluminum industry
Concrete prefabrication, aircraft manufacturing industry
Oil and gas pipelines, wind turbine blades, tunnel engineering, etc
field
