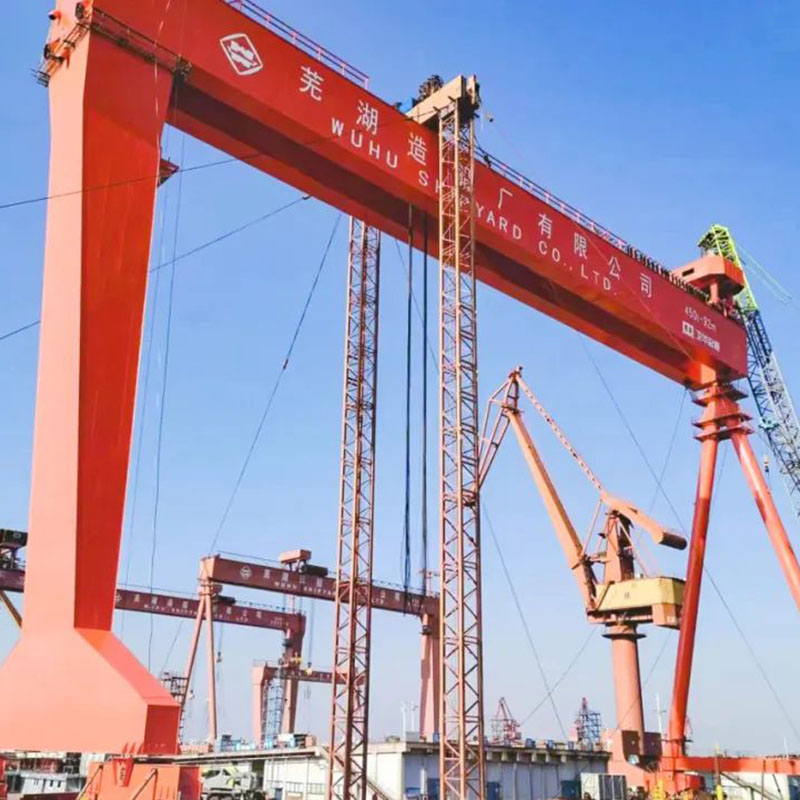

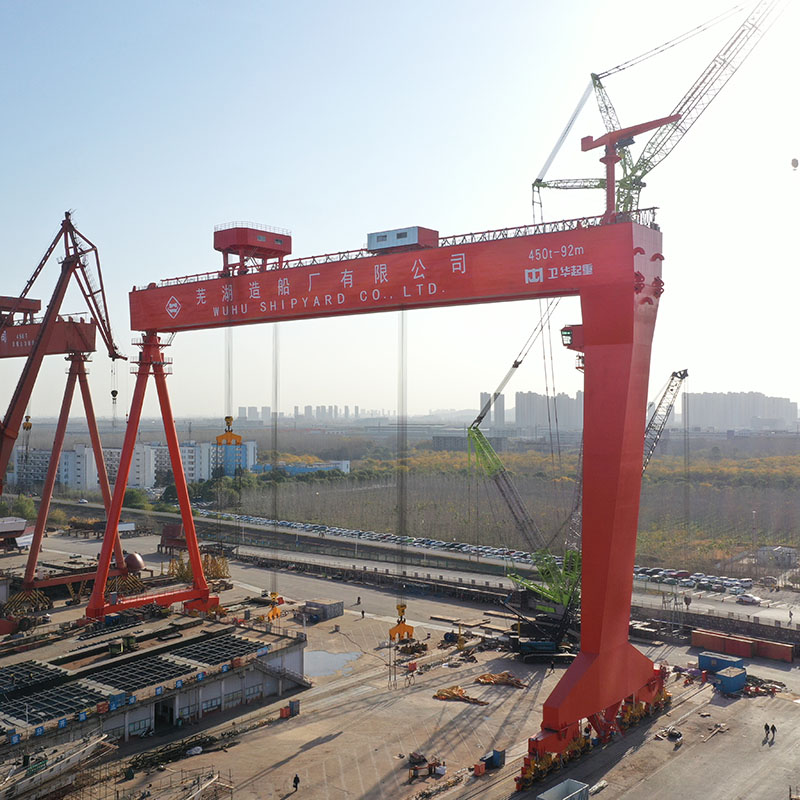

The product has a total span of 92m and a rated lifting weight of 450t
Rated turning weight 300t
Mainly used for flipping and folding operations of ship hulls
It has functions such as lifting, hoisting, and turning over in sections in the air
With intelligent design and leading performance
1. During the design phase, software (ANSYS) is used to simulate and analyze various operating conditions of the product, adjust the bearing stress, and make the product have wind resistance, earthquake resistance, collision prevention, and overturning prevention capabilities.
2. The lifting drum adopts a double-layer parallel winding structure and is equipped with a rope guide to prevent the steel wire rope from jumping due to excessive deviation angle during lifting, ensuring safe operation.
3. Each institution adopts a variable frequency electrical control system, which has load balancing, high-precision positioning, and automatic leg correction functions. It can achieve slow operation under full load and fast operation under light load, effectively solving the problem of safe switching between multiple hooks lifting at the same time and a single hook lifting independently.
4. Equipped with a safety monitoring system, it has multiple functions such as management of job tasks and operating parameters, status monitoring, recording, tracing, alarm information sound, image display, etc.
5. The whole machine is equipped with an elevator and an emergency step ladder passage. Drivers and maintenance personnel can reach the driver's cab, high and low control rooms, and the upper part of the main beam through escalators or elevators for easy access.
