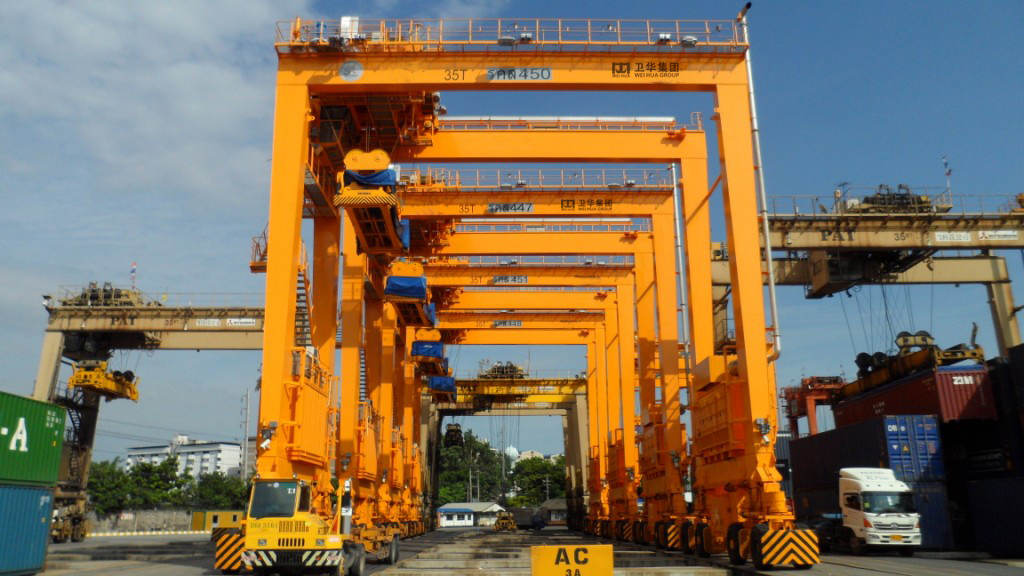

rubber tyre container gantry crane

Product Introduction:

1.rubber tyre container gantry crane is a special machine for stacking operations in container yards, which is widely used in port terminals and container yards.

2.Special container spreaders can be used to lift 20, 40, 45 standard containers and hydraulic storage tanks.

3.Large and small car running machine adopts three in one reducer to facilitate maintenance.

4.The tire can achieve a 90-degree steering for shifting operations and have 20 degrees or 45 degrees of skew function.

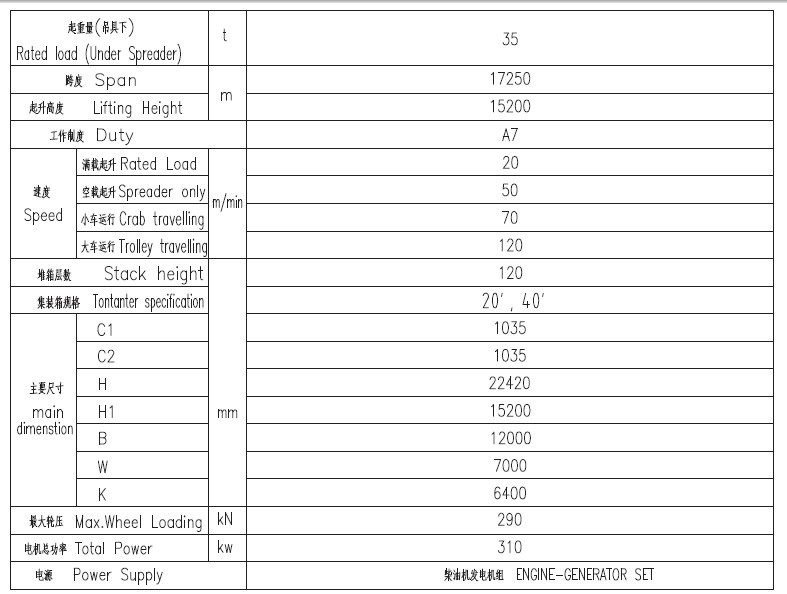

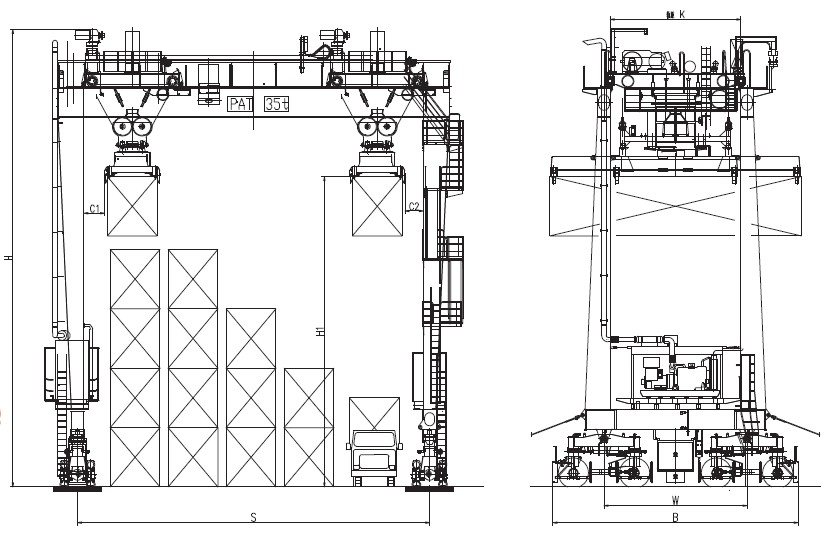

Product diagram and technical specifications:
